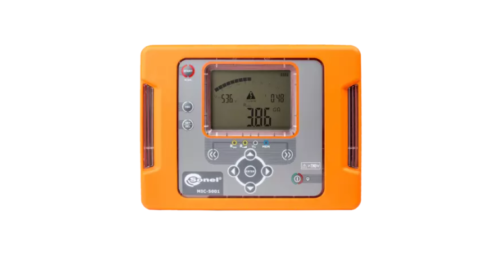

SONEL MIC-5001 Insulation Resistance Meter
Measure the insulation resistance up to 5 TΩ
The Sonel MIC-5001 functional insulation resistance meter is a reliable tool for measuring insulation resistance up to 5 TΩ. Due to its excellent performance, it is used in a wide range of applications, including industry, railway industry and housebuilding industry. The device combines a number of advantages – it is handy, has an ergonomic shape and a robust casing with a high level of protection. In addition, it is characterised by low battery power consumption, and it is possible to recharge the batteries even during measurements.
Technical Specifications
Reviews (0)
Technical Specifications
Insulation resistance measurement
Measurement range acc. to IEC 61557-2 for (R_{ISOmin}=frac{U_{ISOnom}}{I_{ISOnom}})…5 TΩ
| Range | Resolution | Accuracy |
|---|---|---|
| 0.0…999.9 kΩ | 0.1 kΩ | ± (3% m.v. + 20 digits) |
| 1.000…9.999 MΩ | 0.001 MΩ | ± (3% m.v. + 20 digits) |
| 1.00…99.99 MΩ | 0.01 MΩ | ± (3% m.v. + 20 digits) |
| 100.0…999.9 MΩ | 0.1 MΩ | ± (3% m.v. + 20 digits) |
| 1.000…9.999 GΩ | 0.001 GΩ | ± (3% m.v. + 20 digits) |
| 10.00…99.99 GΩ | 0.01 GΩ | ± (3% m.v. + 20 digits) |
| 100.0…999.9 GΩ | 0.1 GΩ | ± (3% m.v. + 20 digits) |
| 1.000…5.000 TΩ | 0.001 TΩ | ± (4% m.v. + 50 digits) |
“m.v.” – measured value
- max. short-circuit current ISC: up to 1.5 mA
Values of measured resistance depending on measuring voltage
| Voltage UISO | Measurement range |
|---|---|
| up to 100 V | 50 GΩ |
| 200 V…400 V | 100 GΩ |
| 500 V…900 V | 250 GΩ |
| 1000 V…2400 V | 500 GΩ |
| 2500 V | 2500 GΩ |
| 5000 V | 5000 GΩ |
RampTest insulation resistance measurement
| Range | Resolution | Accuracy |
|---|---|---|
| 0.0…999.9 kΩ | 0.1 kΩ | ±(5% m.v. + 40 digits) |
| 1.000…9.999 MΩ | 0.001 MΩ | ±(5% m.v. + 40 digits) |
| 10.00…99.99 MΩ | 0.01 MΩ | ±(5% m.v. + 40 digits) |
| 100.0…999.9 MΩ | 0.1 MΩ | ±(5% m.v. + 40 digits) |
| 1.000…9.999 GΩ | 0.001 GΩ | ±(5% m.v. + 40 digits) |
| 10.00…99.99 GΩ | 0.01 GΩ | ±(5% m.v. + 40 digits) |
| 100.0…999.9 GΩ | 0.1 GΩ | ±(5% m.v. + 40 digits) |
| 1.000…4.999 TΩ | 0.001 TΩ | ±(5% m.v. + 40 digits) |
The measurement of breakdown voltage in RampTest mode
| Range | Resolution | Chosen UISO | Accuracy |
|---|---|---|---|
| 25.0 V…99.0 V | 0.1 V | ≤600 V | ± (5% m.v. + 10 digits) |
| 100 V…600 V | 1 V | ≤600 V | ± (5% m.v. + 4 digits) |
| 25 V…999 V | 1 V | >600 V | ± (5% m.v. + 5 digits) |
| 1.00 kV…5.00 kV | 10 V | >600 V | ± (5% m.v. + 4 digits) |
DC and AC voltage measurement
| Range | Resolution | Accuracy |
|---|---|---|
| 0…299.9 V | 0.1 V | ±(3% m.v. + 2 digits) |
| 300…750 V | 1 V | ±(3% m.v. + 2 digits) |
- frequency range: 45…65 Hz
