EARTH BARS AND DISCONNECTING LINKS
SPEEDWELL Earth Bars are an efficient and convenient solution for providing a common earth point to connect to the main earthing System. Integral disconnecting links are provided for isolation at the time of testing. These Earth Bars come in variety of specifications and sizes to suit different applications, the standard sizes are shown in the table with many variations.
Other sizes and variations can be made to order.
Materials: Bar – Hard Drawn Copper Bar BS: 1432 C101
Fasteners – Brass, Silicon & Phosphor Bronze, Stainless Steel.
Channel Base – Powder Coated Mild Steel
Insulators – Reinforced Polyester.

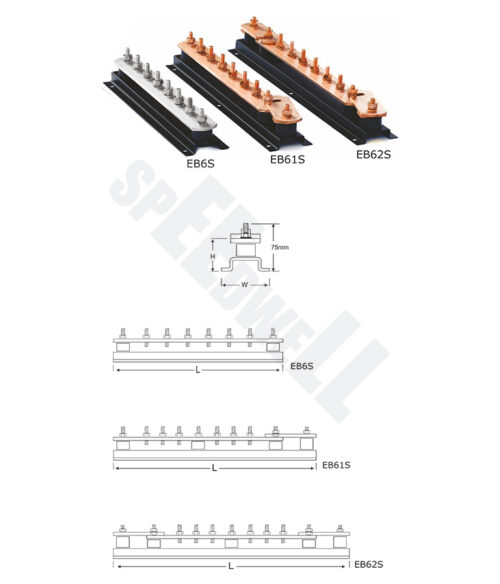

| Terminals | W | H | L (Link-0) | Cat. # | L (Link-1) | Cat. #2 | L (Link-2) | Cat. #3 |
| 4 | 90 | 48 | 300 | EB4S | 375 | EBL41S | 450 | EBL42S |
| 6 | 90 | 48 | 400 | EB6S | 475 | EBL61S | 550 | EBL62S |
| 8 | 90 | 48 | 500 | EB8S | 575 | EBL81S | 650 | EBL82S |
| 10 | 90 | 48 | 650 | EB10S | 725 | EBL101S | 800 | EBL102S |
| 12 | 90 | 48 | 750 | EB12S | 825 | EBL121S | 900 | EBL122S |
| 14 | 90 | 48 | 850 | EB14S | 925 | EBL141S | 1000 | EBL142S |
| 16 | 90 | 48 | 950 | EB16S | 1025 | EBL161S | 1100 | EBL162S |
| 18 | 90 | 48 | 1050 | EB18S | 1125 | EBL181S | 1200 | EBL182S |
| 20 | 90 | 48 | 1200 | EB20S | 1275 | EBL201S | 1350 | EBL202S |
| 22 | 90 | 48 | 1300 | EB22S | 1375 | EBL221S | 1450 | EBL222S |
| 24 | 90 | 48 | 1400 | EB24S | 1475 | EBL241S | 1550 | EBL242S |
| 26 | 90 | 48 | 1500 | EB26S | 1575 | EBL261S | 1650 | EBL262S |
| 28 | 90 | 48 | 1650 | EB28S | 1725 | EBL281S | 1800 | EBL282S |
| 30 | 90 | 48 | 1750 | EB30S | 1825 | EBL301S | 1900 | EBL302S |
