Super Extreme Oil-Free Compressors
Super Extreme oil-free compressors provide independent 10 bar (145 psi) and 30 bar (435 psi) outputs from a single portable pump. Unlike conventional portable compressors that operate at one fixed pressure, Super Extreme provides two simultaneous pressure circuits from the same source, thereby eliminating the need to carry multiple units or reconfigure your setup between tasks requiring different pressures.
All three models share the same pump design: a 2-cylinder air-cooled, oil-free reciprocating compressor engineered by Nardi Compressori, rated at 1.6 kW (2.2 hp) at 1400 rpm (50 Hz) or 1700 rpm (60 Hz). Tank capacity and mobility configuration vary by model.
Description
Technical Specifications
Reviews (0)

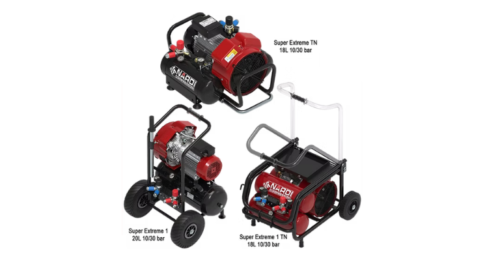

SUPER EXTREME TN 18L
Fixed Handle Base Frame for Compact Mobility
Tank: 18 L (4.8 gal)
Weight: 34 kg (75 lb)
Dimensions: 62 × 50 × 40 cm (24.4 × 19.7 × 15.7 inches)
Configuration: Fixed handles on base frame
Designed for: Mobile technicians, compact transport, lightweight portability
The TN 18L offers the most compact and lightweight configuration. Fixed handles enable manual transport across work sites. Smallest of the three models, making it ideal for operations where minimal footprint and easy maneuvering are priorities. Best for mobile service work where portability is essential.
SUPER EXTREME 1 TN 18L
Folding Handle Trolley-Mounted for Field Mobility
Tank: 18 L (4.8 gal) aluminum
Weight: 57 kg (125 lb)
Dimensions: 67 × 65 × 48 cm (26.4 × 25.6 × 18.9 in)
Configuration: Trolley frame with wheels and folding handle
Designed for: Mobile service work, field maintenance, multiple work sites
The 1 TN 18L adds wheels and a folding handle without increasing overall tank capacity. Large wheels handle rough surfaces. Folding handle reduces height for compact loading into vehicles. Best for mobile technicians, traveling between sites, applications requiring frequent repositioning.
SUPER EXTREME 1 20L
Fixed Handle Trolley-Mounted for Job-Site Mobility
Tank: 20 L (5.3 gal) aluminum
Weight: 46 kg (102 lb)
Dimensions: 54 × 60 × 83 cm (21.3 × 23.6 × 32.7 in)
Configuration: Welded steel trolley frame with wheels
Designed for: Active job sites, workshop bases, extended run times
The 1 20L increases tank capacity by 2 liters (compared to 18L models) without proportional weight increase. The welded steel trolley frame rolls on two wheels. Best for crews working from a single when mobility is important.
Dual Independent Pressure System
The Super Extreme’s key technical difference is dual independent outlets:
10 bar (145 psi) outlet
Controlled by black-knobbed pressure regulator (0-10 bar adjustment)30 bar (435 psi) outlet
Controlled by red-knobbed pressure regulator (0-30 bar adjustment)
Each outlet is equipped with its own check valve. The circuits operate completely independently. Pressure in one outlet does not affect pressure in the other.
This allows simultaneous operation of equipment with different pressure requirements from a single power source. You may operate both outlets at full rated pressure and flow simultaneously
Free Air Delivery (FAD)
At 10 bar:
50 Hz: 96 L/min (3.4 cfm)
60 Hz: 115 L/min (4.1 cfm)
At 30 bar:
50 Hz: 90 L/min (3.2 cfm)
60 Hz: 108 L/min (3.8 cfm)
Intake: 130 L/min (4.6 cfm) at atmospheric pressure.
The Extreme Series
Technical Specifications
| Model | Power | Cylinders | Intake | Air Tank Size (L) | dBA | Weight | Accessories | Available Versions |
|---|---|---|---|---|---|---|---|---|
| Super Extreme TN | 1.6 kW (2.2 hp) | 2 | 130 L/min (4.6 cfm) | 18 | 72 | 34 kg (75 lb) | Dual-Handle Frame Rubber Foot Pads | 1 |
| Super Extreme 1 TN | 1.6 kW (2.2 hp) | 2 | 130 L/min (4.6 cfm) | 18 (9+9) | 72 | 57 kg (125 lb) | Wheeled Trolley with Folding Handle | 1 |
| Super Extreme 1 | 1.6 kW (2.2 hp) | 2 | 130 L/min (4.6 cfm) | 20 | 72 | 46 kg (102 lb) | Wheeled Trolley with Fixed Handle | 1 |
