Specifications
| Part Number | Tip Size | Metal Thickness | Cutting Speed | Average Kerf Width | Total Preheat Oxygen Consumption | Gas Pressure – Cutting Oxygen | Gas Pressure – Fuel Gas | Total Fuel Gas Consumption | Total Oxygen Consumption |
|---|---|---|---|---|---|---|---|---|---|
| 0333-0322 | 0 in. | 1/2 in. | 18-22 in./min | 0.06 in. | 44-240 cfh | 30-35 psig | 3-5 psig | 22-110 cfh | 70-80 cfh |
| 0333-0323 | 1 in. | 3/4 in. | 15-20 in./min | 0.08 in. | 44-240 cfh | 30-35 psig | 3-6 psig | 22-110 cfh | 70-80 cfh |
| 0333-0332 | 12 in. | 18 in. | 2-3 in./min | – | 60-290 cfh | 45-55 psig | 10-16 psig | 30-130 cfh | 1150-1350 cfh |
| 0333-0324 | 2 in. | 1 in. | 14-18 in./min | 0.09 in. | 44-240 cfh | 35-40 psig | 3-6 psig | 22-110 cfh | 115-125 cfh |
| 0333-0324 | 2 in. | 1 1/2 in. | 12-16 in./min | 0.09 in. | 44-240 cfh | 35-40 psig | 3-6 psig | 22-110 cfh | 115-125 cfh |
| 0333-0324 | 2 in. | 1 in. | 14-18 in./min | 0.09 in. | 44-240 cfh | 40-45 psig | 4-8 psig | 22-110 cfh | 125-135 cfh |
| 0333-0324 | 2 in. | 1 1/2 in. | 12-16 in./min | 0.09 in. | 44-240 cfh | 40-45 psig | 4-8 psig | 22-110 cfh | 125-135 cfh |
| 0333-0325 | 3 in. | 2 in. | 10-14 in./min | 0.10 in. | 44-240 cfh | 40-45 psig | 4-8 psig | 22-110 cfh | 150-175 cfh |
| 0333-0325 | 3 in. | 2 1/2 in. | 9-12 in./min | 0.10 in. | 44-240 cfh | 40-45 psig | 4-8 psig | 22-110 cfh | 150-175 cfh |
| 0333-0325 | 3 in. | 2 in. | 10-14 in./min | 0.10 in. | 44-240 cfh | 45-50 psig | 5-9 psig | 22-110 cfh | 175-200 cfh |
| 0333-0325 | 3 in. | 2 1/2 in. | 9-12 in./min | 0.10 in. | 44-240 cfh | 45-50 psig | 5-9 psig | 22-110 cfh | 175-200 cfh |
| 0333-0326 | 4 in. | 3 in. | 8-11 in./min | 0.12 in. | 44-240 cfh | 40-50 psig | 6-9 psig | 22-110 cfh | 210-250 cfh |
| 0333-0327 | 5 in. | 4 in. | 7-10 in./min | 0.14 in. | 44-240 cfh | 45-55 psig | 6-9 psig | 22-110 cfh | 300-360 cfh |
| 0333-0327 | 5 in. | 5 in. | 6-9 in./min | 0.14 in. | 44-240 cfh | 45-55 psig | 6-9 psig | 22-110 cfh | 300-360 cfh |
| 0333-0327 | 5 in. | 4 in. | 7-10 in./min | 0.14 in. | 44-240 cfh | 50-55 psig | 6-10 psig | 22-110 cfh | 330-360 cfh |
| 0333-0327 | 5 in. | 5 in. | 6-9 in./min | 0.14 in. | 44-240 cfh | 50-55 psig | 6-10 psig | 22-110 cfh | 330-360 cfh |
| 0333-0328 | 6 in. | 6 in. | 5-7 in./min | 0.17 in. | 44-240 cfh | 45-55 psig | 6-10 psig | 22-110 cfh | 400-500 cfh |
| 0333-0328 | 6 in. | 8 in. | 4-6 in./min | 0.18 in. | 44-240 cfh | 45-55 psig | 6-10 psig | 22-110 cfh | 400-500 cfh |
| 0333-0328 | 6 in. | 6 in. | 5-7 in./min | 0.17 in. | 44-240 cfh | 55-65 psig | 8-12 psig | 22-110 cfh | 450-500 cfh |
| 0333-0328 | 6 in. | 8 in. | 4-6 in./min | 0.18 in. | 44-240 cfh | 55-65 psig | 8-12 psig | 22-110 cfh | 450-500 cfh |
| 0333-0330 | 8 in. | 12 in. | 3-4 in./min | 0.41 in. | 50-265 cfh | 60-70 psig | 10-14 psig | 25-120 cfh | 750-850 cfh |
| 0333-0331 | 10 in. | 15 in. | 2-4 in./min | – | 50-265 cfh | 45-55 psig | 10-16 psig | 25-120 cfh | 1000-1200 cfh |
Ordering
| Description | Product Number |
|---|---|

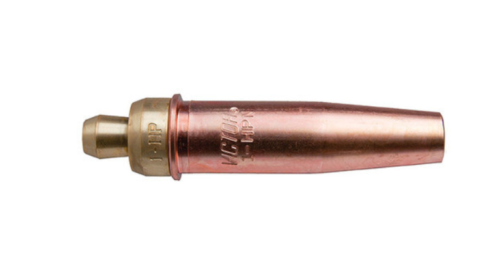

| Victor Professional Cutting Tip, Type HPN, Size: 0 | 0333-0322 |
| Victor Professional Cutting Tip, Type HPN, Size: 1 | 0333-0323 |
| Victor Professional Cutting Tip, Type HPN, Size: 2 | 0333-0324 |
| Victor Professional Cutting Tip, Type HPN, Size: 3 | 0333-0325 |
| Victor Professional Cutting Tip, Type HPN, Size: 4 | 0333-0326 |
| Victor Professional Cutting Tip, Type HPN, Size: 5 | 0333-0327 |
| Victor Professional Cutting Tip, Type HPN, Size: 6 | 0333-0328 |
| Victor Professional Cutting Tip, Type HPN, Size: 8 | 0333-0330 |
| Victor Professional Cutting Tip, Type HPN, Size: 10 | 0333-0331 |
| Victor Professional Cutting Tip, Type HPN, Size: 12 | 0333-0332 |
