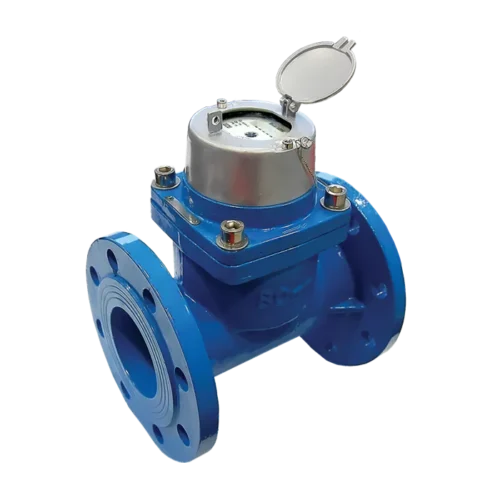

B-meters TAN-X5 Tangential irrigation water meter
Tangential irrigation water meter with dry dial and magnetic transmission.
Suitable for monitoring murky water with solid sediments present.
Description
Reviews (0)
| Size | DN (inch) | 50 (2″) | 65 (2″1/2) | 80 (3″) | 100 (4″) | 125 (5″) | 150 (6″) | 200 (8″) | |
| Max Flow Rate | QMAX | m³/h | 70 | 100 | 150 | 250 | 350 | 500 | 900 |
| Nominal Flow Rate | Qn | m³/h | 35 | 50 | 75 | 125 | 175 | 250 | 450 |
| Transitional flow rate | Qt ±2 | m³/h | 10,5 | 15 | 22,5 | 37,5 | 52,5 | 75 | 135 |
| Min flow rate | QMIN ±5% | m³/h | 2,8 | 4 | 6 | 10 | 14 | 20 | 36 |
| Max temperature | ºC | 50 | |||||||
| Max admissible pres. MAP | bar | 16 | |||||||
| Max reading dial | m³ | 9.999.999 | |||||||
| Min reading dial | L | 2 | 20 | ||||||
