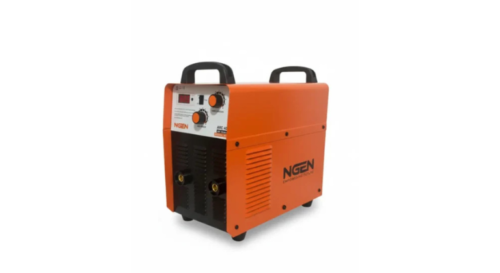

NGEN-ARC400
- Excellent arcing, stable arc, little spatter and high duty cycle, which can reach 60% in 40?. The current attenuation of the welding wire lengthened by 100M is not large, and can still meet the needs of high quality welding.
- Certified to Certification of EU (CE) and China Compulsory Certification (CCC).
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- Hot start, anti–stick and arc force.
PRODUCT ACCESSORIES
- Earthing Clamp 3mtr & Earthing Holder 3mtr
PRODUCT DISCRIPTION
- Adopting powerful IGBT tube and nanometer crystal transformer, advanced inverter technology, with under voltage and overheating protection, automatic under voltage fluctuation compensation.
Specifications
| Model | NGEN-ARC400 |
| Voltage (V): | 380V ±15% |
| Frequency (Hz): | 50–60 |
| Input Power (kVA): | 13.3 |
| No-Load Voltage (V): | 70 |
| Current Range (A): | 20–320A |
| Duty Cycle: | 60% |
| Arc Force Current Range (A): | 0–100A |
| Welding Rod (mm): | 1.6–5.0 |
| Power Factor: | 0.93 |
| Housing Protection Grade: | IP21S |
| Insulation Grade: | F |
| Weight (kg): | 14.7 |
| Dimensions (L×W×H mm): | 420 × 215 × 360 |
| Carton CBM (m³): | 0.077 |
| Anti-Stick Function: | ✔ |
| Arc Force: | ✔ |
| VRD Function: | ✔ |
| Hot Arcing: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Over Heat Protection: | ✔ |
| Over Voltage Protection: | ✔ |
| Under Voltage Protection: | ✔ |
