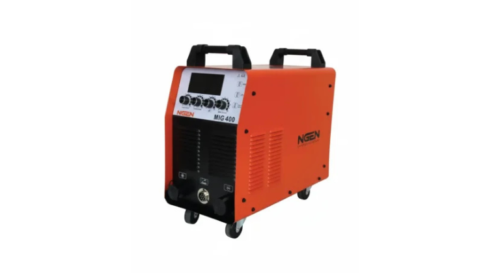

NGEN-MIG400 W/T
- Full bridge IGBT inverter technology, high reliability and less energy consumption, over-heat and over current protection. MIG and MMA combination enables multiple functions.
- Post-welding wire-end droplet elimination function, high no-load, slow wire feeding, high arc ignition successful rate.
- Unique welding dynamics control circuit; double drive wire feeding configuration to ensure stable arc, less spatter, fine welding bead and high welding efficiency.
- A prompt feedback circuit that provides for stable arc can keep electric arc adjusted responsively as wire stick-out varies. High duty circle can withstand long time high load welding
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- Post-weIding wire-end dropIet eIimination function
- Unique weIding dynamics controI circuit
- A prompt feedback circuit that provides for stabIe arc can keep eIectric arc adjusted responsiveIy as wire stick-out varies
PRODUCT ACCESSORIES
- MIG Torch 3mtr length
- Co2 Regulator
- Earth Clamp & Holder
- Closed Wire Feeder
PRODUCT DISCRIPTION
- This series of welding machines has MIG/MAG/MMA ,it is multifunctional.It adopts IGBT high-frequency inverter technology and advanced PWM control mode, with fast dynamic response, reliable quality and stable performance. Output current self-adaptation within 20mm of wire extension, Suitable for all-position welding, high efficiency and energy saving, high load continuity; Droplet transfer waveform control, stable arc, less spatter, good weld shape, arc ignition and burn back time circuit to ensure the success rate of arc ignition.
Specifications
| Model | NGEN-MIG400 W/T |
| Input Voltage (V): | 3 Phase AC380V ±15% |
| Input Frequency (Hz): | 50-60 |
| Input Power (KVA): | 24.7 |
| Max Input Current (A): | 37.5 |
| Max Effective Input Current (A): | 29 |
| No-Load Voltage (V): | 67 |
| Output Current (A): | 50–400 |
| Output Voltage (V): | 39 |
| Duty Cycle (%): | 60 |
| Efficiency (%): | 85 |
| Power Factor: | 0.93 |
| Insulation Grade: | F |
| Housing Protective Grade: | IP21S |
| Wire Feeder: | External |
| Wire Spool Dia (mm): | 270 / 15KG |
| Wire Dia (mm): | 0.8 / 1.0 / 1.2 / 1.6 |
| Plate Thickness (mm): | > 0.6 |
| Dimensions (L×W×H mm): | 580 × 280 × 530 |
| Carton CBM (m³): | 0.2135 (including wire feeder 0.055m³) |
| MIG/MAG: | ✔ |
| MMA: | ✔ |
| Slow-Feeding: | ✔ |
| Burn Back Time: | ✔ |
| Inching: | ✔ |
| Inductance Adjustable: | ✔ |
| Crater: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Thermal Protection: | ✔ |
| Overloading Protection: | ✔ |
| Low Voltage Protection: | ✔ |
| MIG Torch: | 40KD / 3M |
| Earth Cable + CO2 Regulator: | 2.5M + AC36V |
| Wire Feeder Type: | Double Drive Roller |
