PRODUCT FUNCTIONS
- Cutting speed fast,incision smooth, bright and cIean
- Check gas and gas deIay time
- Cut-65P1 has MMA function
PRODUCT ACCESSORIES
- LED Display
- Plasma Torch 4mtr length
- Cable Clamp 3mtr length
PRODUCT DISCRIPTION
- Cutting current, pre air time, current ramp up time, post air time, and arc current are independently adjustable
- Fast arc initiation speed, good cutting and joining effect
- Has 2T/4T function, convenient to use
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating
Specifications

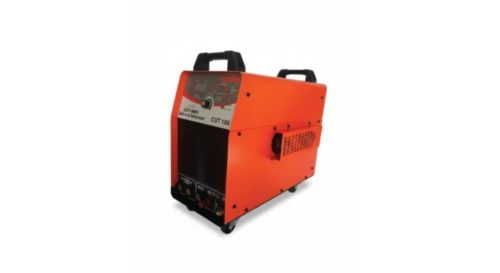

| Model | CUT100 |
| Voltage (V): | 380V ±15% |
| Frequency (Hz): | 50–60 |
| Input Power (KVA): | 15.2 |
| No-Load Voltage (V): | 300 |
| Current Range (A): | 20–100A |
| Duty Cycle: | 60% |
| Arc Striking: | HF / Pilot Arc |
| Quality Cutting Thickness: | 28 mm |
| Max Cutting Thickness: | 40 mm |
| Proper Cutting Pressure: | 4–6 |
| Power Factor: | 0.93 |
| Efficiency (%): | 85 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (Kg): | 35 |
| Dimensions (L×W×H mm): | 550 × 270 × 790 |
| Carton CBM (m³): | 0.119 |
| Post Gas: | ✔ |
| Un-Touch HF Pilot Arc: | ✔ |
| Check Gas Function: | ✔ |
| 2T/4T: | Optional |
| Automatic Voltage Compensation: | ✔ |
| Thermal Protection: | ✔ |
| Over Current Protection: | ✔ |
| Low Voltage Protection: | ✔ |
| Cutting Torch: | ✔ |
