PRODUCT FUNCTIONS
- Stable MCU ControI System
- Post-weIding wire-end dropIet eIimination function
- Unique weIding dynamics controI circuit
- A prompt feedback circuit that provides for stabIe arc can keep eIectric arc adjusted responsiveIy as wire stick-out varies
PRODUCT ACCESSORIES
- MIG Torch 3mtr length
- Earth Clamp & Holder
PRODUCT DISCRIPTION
- Digital tube display, built-in front air function, adjustable rear air time
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating
Specifications

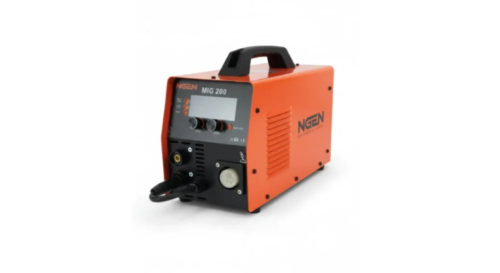

| Model | NGEN-MIG200 |
| Voltage (V): | AC220V ±15% |
| Frequency (Hz): | 50-60 |
| Input Power (KVA): | 6.1 |
| No-Load Voltage (V): | 56 |
| MIG Current Range (A): | 30–160A |
| MMA Current Range (A): | 20–160A |
| LIFT TIG Current Range (A): | 20–160A |
| Duty Cycle (%): | 45% |
| FLUX MIG Wire Dia (mm): | 0.8 / 1.0 |
| CO2 MIG Wire Dia (mm): | 0.6 / 0.8 |
| MMA Welding Rod (mm): | 1.6 / 3.2 |
| Wire Spool Weight (KG): | 1 / 5KG |
| Power Factor: | 0.73 |
| Efficiency (%): | 80 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (KG): | 8.3KG |
| Dimensions (L×W×H mm): | 380 × 180 × 246 |
| Carton CBM (m³): | 0.04 |
| FLUX MIG: | ✔ |
| CO2/Mixed GAS MIG: | ✔ |
| MMA: | ✔ |
| Lift TIG: | ✔ |
| Choke: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Thermal Protection: | ✔ |
| Over Current Protection: | ✔ |
| Low Voltage Protection: | ✔ |
| MIG Wire: | Optional |
| MIG Torch: | 15AK-2.5M |
