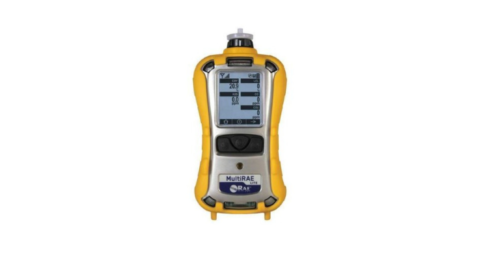

RAE Systems MultiRAE Lite Pumped Portable Multi-gas Monitor – 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless – MAB3-A2C112E-020
MAB3-A2C112E-020 MultiRAE Lite Pumped Portable Multi-gas Monitor – 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless by RAE Systems
The MultiRAE Lite is the optimal one-to-six1-gas monitor for personal protection and leak detection applications. The MultiRAE Lite is available in pumped and diffusion versions and features the broadest selection of sensor options in its class. The MultiRAE Lite can be configured to exactly meet the detection needs and compliance requirements of various countries, industries, and applications.
The MultiRAE Lite’s optional wireless capability improves safety by providing commanders and safety officers real-time access to instrument readings and alarm status from any location for better situational awareness and faster incident response.
Key Features
- Wireless access to real-time instrument readings and alarm status from any location
- Unmistakable five-way local and remote wireless notification of alarm conditions including Man Down Alarm
- Over 25 interchangeable sensor options, including PID for VOCs, NDIR and catalytic for combustibles, and NDIR for CO2
- Intelligent sensors store calibration data, so they can be swapped in the field
- Large graphical display with easy-to-use, icon-driven user interface
- Continuous datalogging (6 months for 5 sensors, 24×7)
Applications
- Chemical
- Food and beverage
- Oil and gas (downstream)
- Pharmaceutical
- Telecommunications
- Wastewater treatment
- Fire overhaul
Specifications
Reviews (0)
Specifications
Instrument Specifications
| Size | Pumped model 7.6″ H × 3.8″ W × 2.6″ D (193 × 96.5 × 66 mm) Diffusion model 6.9″ × 3.8″ × 2.2″ (175 × 96.5 × 56 mm) |
| Weight | Pumped model 31 oz (880 g) Diffusion model 26.8 oz (760 g) |
| Sensors | Over 25 interchangeable sensors including PID (VOCs), electrochemical, LEL, NDIR, and COâ‚‚ |
| Battery Options Runtime and Recharge Time | Rechargeable Li-ion ~12 hr (pumped) / 18 hr (diffusion), < 6 hr recharge Extended Li-ion ~18 hr (pumped) / 28 hr (diffusion), < 9 hr recharge Alkaline 4 × AA ~6 hr (pumped) / 8 hr (diffusion) |
| Display | Monochrome LCD (128 × 160) with backlight and auto flip |
| Display Readout | Real-time gas readings, PID correction, Man Down status Battery, datalogging, wireless status STEL, TWA, peak, minimum values |
| Keypad Buttons | 3 keys Mode, Y/+, N/- |
| Sampling | Built-in pump or diffusion |
| Calibration | Automatic (AutoRAE 2) or manual |
| Alarms | 95 dB buzzer, vibration, flashing LEDs Wireless alerts and Man Down alarm |
| Datalogging | Up to 6 months (5 sensors, 1-min interval) Configurable 1–3600 seconds |
| Communication and Data Download | PC via cradle, charger, or AutoRAE 2 Optional wireless RF modem |
| Wireless Network | ProRAE Guardian or EchoView Host system |
| Wireless Range | ~100 m RAELink3 ~200 m EchoView / RAEMesh Wi-Fi ~100 m |
| Operating Temperature | -20°C to 50°C |
| Humidity | 0–95% RH non-condensing |
| Dust and Water Resistance | IP65 pumped IP67 diffusion |
| EMI RFI | EMC Directive 2004/108/EC |
| Performance Tests | CSA C22.2 No. 152, ISA-12.13.01 |
| Languages | Multiple including English, Arabic, French, German, Spanish, etc. |
| Warranty | 2 years main components 1 year sensors and consumables |
| Wireless Frequency | IEEE 802.15.4 Sub 1GHz Wi-Fi 802.11 b/g |
| Wireless Approvals | FCC Part 15, CE R&TTE |
| Radio Module | Supports RM900A |
Default Sensor Specifications
| Sensor | Range | Resolution |
|---|---|---|
| PID Sensor | ||
| VOC 10.6 eV | 0 to 1,000 ppm | 1 ppm |
| Combustible Sensors | ||
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR Methane LEL | 0 to 100% LEL | 1% LEL |
| NDIR Methane Vol. | 0 to 100% Vol. | 0.1% Vol. |
| Carbon Dioxide Sensor | ||
| Carbon Dioxide COâ‚‚ NDIR | 0 to 50,000 ppm | 100 ppm |
| Electrochemical Sensors | ||
| Ammonia NH₃ | 0 to 100 ppm | 1 ppm |
| Carbon Monoxide CO | 0 to 500 ppm | 1 ppm |
| CO Ext. Range | 0 to 2,000 ppm | 10 ppm |
| CO Hâ‚‚ Comp. | 0 to 2,000 ppm | 10 ppm |
| CO+ | 0 to 500 ppm | 1 ppm |
| Hâ‚‚S Combo | 0 to 200 ppm | 0.1 ppm |
| Chlorine Clâ‚‚ | 0 to 50 ppm | 0.1 ppm |
| Chlorine Dioxide ClOâ‚‚ | 0 to 1 ppm | 0.03 ppm |
| Ethylene Oxide EtO-A | 0 to 100 ppm | 0.5 ppm |
| Ethylene Oxide EtO-B | 0 to 10 ppm | 0.1 ppm |
| Ethylene Oxide EtO-C Ext. Range | 0 to 500 ppm | 10 ppm |
| Formaldehyde HCHO | 0 to 10 ppm | 0.05 ppm |
| Hydrogen Hâ‚‚ | 0 to 1,000 ppm | 10 ppm |
| Hydrogen Cyanide HCN | 0 to 50 ppm | 0.5 ppm |
| Hydrogen Sulfide Hâ‚‚S | 0 to 100 ppm | 0.1 ppm |
| Hâ‚‚S Ext. Range | 0 to 1,000 ppm | 1 ppm |
| Methyl Mercaptan CH₃-SH | 0 to 10 ppm | 0.1 ppm |
| Nitric Oxide NO | 0 to 250 ppm | 0.5 ppm |
| Nitrogen Dioxide NOâ‚‚ | 0 to 20 ppm | 0.1 ppm |
| Oxygen Oâ‚‚ | 0 to 30% Vol. | 0.1% Vol. |
| Phosphine PH₃ | 0 to 20 ppm | 0.1 ppm |
| Sulfur Dioxide SOâ‚‚ | 0 to 20 ppm | 0.1 ppm |
