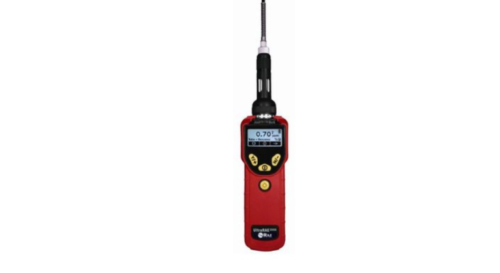

RAE Systems UltraRAE 3000 Portable Handheld Compound-Specific VOC Monitor – 9.8 eV Lamp, Li-Ion / Universal Charger – 059-D310-000
059-D310-000 UltraRAE 3000 Portable Handheld Compound-Specific VOC Monitor – 9.8 eV Lamp, Li-Ion / Universal Charger by RAE Systems
The UltraRAE 3000 is the most advanced Compound-Specific Monitor on the market. Its Photoionization Detector’s (PID) extended range of 0.05 to 10,000 ppm in VOC mode and 50 ppb to 200 ppm in benzene-specific mode makes it an ideal instrument for applications, from entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill response and refinery down-stream monitoring.
Monitor only includes
- UltraRAE 3000 Monitor, Model PGM-7360
- Wireless communication module built-in
- Datalogging with ProRAE Studio II Package for Windows® XP, Windows® Vista, or Windows® 7
- Travel Charger
- RAE UV lamp and RAE-Sep™ Tubes
- Flex-I-Probe™ and short probe
- External filter
- Red rubber boot
- Alkaline battery adapter
- Lamp-cleaning kit
- Tool kit
- Lithium-ion (Li-Ion) battery with universal AC/DC charger and international plug kit
- Operation CD-ROM
- Operation & Maintenance manual
- Soft leather carrying case
Monitor with Accessories Kit
- Hard transport case with pre-cut foam padding
- Charging/download cradle
- 5 porous metal filters and O-rings
- Organic vapor zeroing kit
- Gas outlet port adapter and tubing
Optional Calibration Kit
- Calibration gas, 34L, as specified
- Calibration regulator and flow controller
Optional Guaranteed Cost of Ownership Program
- 4-year repair and replacement guarantee
- Annual maintenance service
Key Features
- 3-second response in VOC mode or 60 seconds in compound-specific mode
- Extended range up to 10,000 ppm (in VOC mode) with improved linearity
- Built-in humidity sensor
- Automatic temperature-controlled sampling time calculation
- Highly specific readings, combining a 9.8eV UV lamp and RAE-Sep™ benzene tube
- New sampling probe design provides instant tube-breakthrough visibility
- Versatile VOC or Benzene-Specific modes
- Real-time wireless built-in – Bluetooth (and optional RAELink3 portable modem) or Mesh Network support
- Integrated RAE Systems Correction Factors list for more than 200 compounds
- Large graphic display
- Multi-language support
- Easy access to lamp, sensor and battery in seconds without tools
- Inexpensive analysis using low-cost RAE-Sep tubes
Application
- Confined space entry pre-screening during refinery and plant maintenance
- Hazardous material response
- Marine spill response
- Refinery down-stream monitoring
- Plant overhaul
