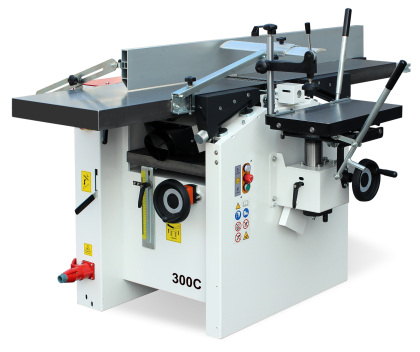

SICAR 300C Combined 3 Operations
Description
The 300C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
| Planer | Unit | 300C |
| Working tables | mm | 300×1500 |
| Cutterblock diameter | mm | 70 |
| Cutterblock rotation speed | r.p.m | 5700 |
| N. of knives | n° | 3 |
| knives dimensions | mm | 300x20x3 |
| Max table adjustement | mm | 4 |
| Thicknesser | Unit | 300C |
| Working table | mm | 300×660 |
| Feed speed | m/1′ | 7 |
| Max. working height | mm | 220 |
| Min. working height | mm | 4 |
| Cutterblock rotation speed | r.p.m. | 5700 |
| Max. cutting depth | mm | 4 |
| Mortiser | Unit | 300C |
| Working table | mm | 250×500 |
| Longitudinal stroke | mm | 205 |
| Trasversal stroke | mm | 95 |
| Vertical stroke | mm | 90 |
| Churck | mm | 16 |
| Churck rotation speed | r.p.m. | 5700 |
| Standard accessories | Unit | 300C |
| Service wrenches | * | |
| Mortiser chuck | * | |
| Guards on mortiseur chuck | * | |
| 3 pcs. planing knives | * | |
| Planer guide | ||
| Bridge sefety hood on planer | * | |
| 3-phase motor power | HP – KW | 3,0 – 2,2 |
| Weight | kg | 290 |
| Optiona accessories | Unit | 300C |
| Single-phase motor | HP – KW | 3,0 – 2,2 |
| Increasing 3-phase motor | HP – KW | 4,0 – 3,0 |
| Wescott(Diameter) | mm | 16 |
