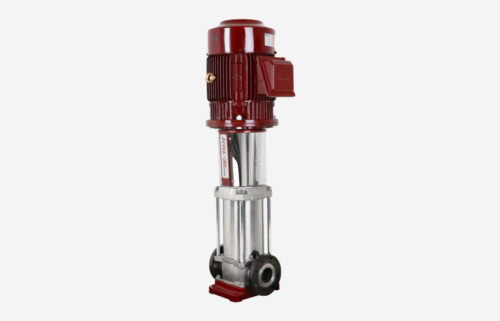

Dooch Stainless Steel Vertical Multistage Pump XR(L) Series

The high efficiency Vertical Multistage Pump of stainless steel that minimize fluid loss from the design of impeller and diffuser using latest fluid engineering technology

Max. Flow(Q)

240m³/h (50Hz), 290m³/h (60Hz)

Max. Head(H)

345m (50Hz), 283m (60Hz)

Operating pressure

Max. 35bar (50Hz), 40bar (60Hz)

Motor power

0.37~200kW (0.5~270HP, 50Hz), 0.75~132kW (1~175HP, 60Hz)

Power specification

· 50Hz – 3PH 200-220/346-380V, 1PH 220-230/240V, 220-240/380-415V, 380-415V · 60Hz – 3PH 220/380V (~7.5kW), 3PH 380V (11kW~)

Frequency

50/60Hz

1200+ products
1200+ products
Categories:,
Description
Reviews (0)

Applications

· Pressure boosting system

· Washing system

· Water treatment system

· Sprinkler

· Industrial plant

· Boiler feed system

· Cooling and Air-Conditioning system

Features

· Non-self priming multistage pump with a wide range of material choices

· Suction and discharge ports on the same level (In-line)
· Standardization of components to maintain compatibility between models
· Cartridge mechanical seal for easy maintenance
· Accurate axial core alignment for low noise, low vibration
· Durable improvement by laser welding of impeller
· Compact assembly and installation
