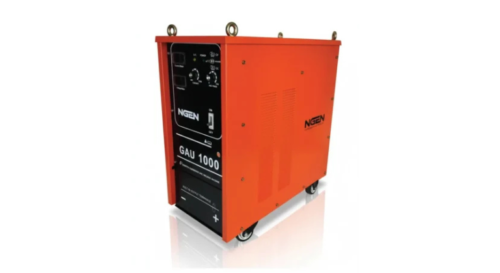

NGEN-GAU1000
- Strong ability to resist power grid fluctuations, the welding machine can work normally when the grid power is 320V~480V;
- 1000A/44V, 100% duty cycle; max short-circuited current is 1500A.
- Multiple output modes; suitable for MM/arc gouging, CC SAW/CV SAW.
- Imported top brands power devices (INFINEON) ensures high reliability.
- Multiple protection including over-current, over-heat, phase loss, overvoltage and undervoltage protections.
- Professional 3-proofing designs ensure well operation in extremely harsh environment.
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- MZ weIding machine is a high-power weIding power source for heavy industry.
- SuitabIe for weIding thick steeI pIates of shipbuiIding industry, steeI structures and Iarge pressure vesseIs
PRODUCT ACCESSORIES
- Power Source
- Welding Carriage
- Welding cable 15mtr
- Earthing Cable 3mtr
PRODUCT DISCRIPTION
Submerged Arc Welding (SAW) is a joining process that involves the formation of an electric arc between a continuously fed electrode and the workpiece to be welded. A blanket of powdered flux surrounds and covers the arc and, when molten, provides electrical conduction between the metal to be joined and the electrode. It also generates a protective gas shield and a slag, all of which protects the weld zone.
Specifications
| Model | GAU1000 |
| Input Voltage (V): | 3 Phase AC380V ±15% |
| Input Frequency (Hz): | 50-60 |
| Rated Input Power (KVA): | 55 |
| Rated Max Input Current (A): | 85 |
| Max Effective Input Current (A): | 85 |
| No-Load Voltage (V): | 90 |
| Output Current (A): | 100–1000 |
| Output Voltage (V): | 44 |
| Duty Cycle (%): | 100 |
| Efficiency (%): | 85 |
| Power Factor: | 0.93 |
| Insulation Grade: | H |
| Housing Protective Grade: | IP21S |
| Wire Diameter (mm): | 2.0 / 3.2 / 4.0 / 5.0 |
| Dimensions (L×W×H mm): | 760 × 380 × 820 |
| MZ Machine Carton CBM (m³): | 0.298 |
| MZ Trolley Machine (m³): | 0.443 |
| SAW: | ✔ |
| MMA: | ✔ |
| Carbon Arc Gouging: | ✔ |
| CC Mode: | ✔ |
| CV Mode: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Thermal Protection: | ✔ |
| Over Loading Protection: | ✔ |
| Low Voltage Protection: | ✔ |
| Earth Cable: | 70mm² / 5m / 2 sets |
| Control Cable: | 14 Pins / 10m |
| Track: | 1m / 2 Pieces |
