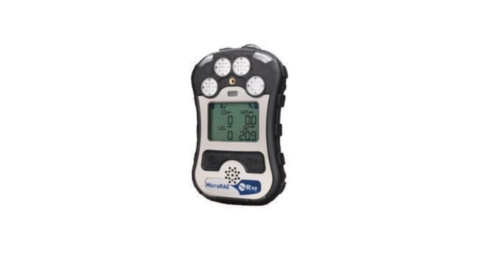

RAE Systems MicroRAE Wireless Four-Gas Monitor, LEL / H2S / CO / O2 – Li-ion / BLE – M031-1111-200
M031-1111-200 MicroRAE Wireless Four-Gas Monitor, LEL / H2S / CO / O2 – Li-ion / BLE by RAE Systems
The MicroRAE four-gas portable detector brings enhanced user-friendliness and flexibility to wireless gas detection. This enables continuous, instant visibility of safety threats for faster, more informed decisions, to protect workers, facilities, and the environment, and to optimize operations.
The MicroRAE is a wireless diffusion detector that simultaneously monitors up to four gases, including hydrogen sulfide, carbon monoxide, oxygen and combustibles (LEL). With its different wireless connectivity options the MicroRAE can deliver real-time instrument readings and alarm status to other wireless offerings such as ConneXt Plus, ConneXt Pro, ConneXt Loneworker4 and Safety Communicator.
- Man Down Alarm with real-time remote wireless notification1
- GPS module for location
- Bluetooth® low energy connection to a Smart Phone device for uplink data communication and device configuration
- Remote notification and Panic function
- Fully automated bump testing and calibration with AutoRAE 2
Industries
Personal protection and general safety and compliance in:
- Lone Worker Applications
- Oil and Gas
- Waste water treatment
- Utilities
- Telecommunications
- Firefighting
- Petrochemicals
- Construction
Optional Accessories
- AutoRAE 2 Automatic Test and Calibration Systems
- Gang Charger (5 units)
- Auxiliary filter
- Hand pump kit
- Truck mount charger
Features & Benefits
- Honeywell ConneXt compatible with Mesh and Wifi wireless configurations
- Compact and lightweight
- IP-67 water and dust-resistant case
- Strong, protective, concussion-proof design
- Real-time gas concentration readings, location, alarm and status enabled by state of-the-art wireless technology
- Unmistakable five-way local and remote notification of alarm conditions
- Short bump test and calibration time
- Global approval for worldwide acceptance
- Filtered LEL sensor options to inhibit sensor poisoning
- Compatible with Safety Communicator
- Device Management with Honeywell SafetySuite
Specifications
Reviews (0)
Specifications
Instrument Specifications
| Size | 4.6 × 3.0 (2.6) × 3.0 × 0.9 in (117 × 76 (66) × 74 × 24 mm) |
| Weight | 7.03 oz (206 g) (including Li-ion battery and clip) |
| Sensors | LEL catalytic bead (combustibles), Oxygen (O₂), Electrochemical sensors for CO, H₂S, HCN |
| Battery | Rechargeable Li-ion |
| Running Time | 15 hours (non-wireless), 11 hours (wireless) Note: Based on 20°C; lower temperatures and alarms may reduce runtime |
| Display | Monochrome 1.73 × 1.29 in (44 × 33 mm) with dual-color backlight |
| Keypad | Two-button operation |
| Direct Readout | Real-time gas readings, Man Down indicator Wireless/GPS status, STEL, TWA, peak & minimum values Intelliflash and policy indicators |
| Alarms | 100 dB buzzer, vibration, flashing LEDs, on-screen alerts Latching/non-latching/manual override Low battery, wireless connectivity, Man Down alarm |
| Datalogging | Up to 6 months (4 sensors, 1-min interval) Configurable from 1 to 3600 seconds |
| Communication | PC data transfer via Travel Charger Optional wireless RF modem |
| Wireless Network | RAE Mesh Network or Standard WiFi |
| Wireless Range | Up to 200 m (Mesh), 100 m (WiFi), 5 m (BLE) |
| EMC/RFI | Directive 2004/108/EC |
| IP Rating | IP67 |
| Calibration | Two-point (manual or AutoRAE 2) |
| Temperature | -20°C to 60°C |
| Humidity | 0–95% RH (non-condensing) |
| Attachments | Stainless steel clip, optional wrist wrap |
| Warranty | 2 years (device and sensors) |
| Model Number | PGM26XX |
| Wireless | IEEE 802.15.4, WiFi 2.4 GHz, Bluetooth 4.0, GPS |
| Wireless Approvals | FCC Part 15, CE R&TTE, Bluetooth 4.0, GPS |
Sensor Specifications
| Sensor | Range | Resolution |
|---|---|---|
| Oxygen (O₂) | 0 to 30.0% | 0.1% |
| Combustible | 0 to 100% LEL | 1% LEL |
| Carbon Monoxide (CO) | 0 to 1,000 ppm | 0–250 ppm / 1 ppm 250–1,000 ppm / 3 ppm |
| Hydrogen Sulfide (H₂S) | 0 to 100 ppm | 0–50 ppm / 0.1 ppm 50–100 ppm / 1 ppm |
| Hydrogen Cyanide (HCN) | 0 to 50 ppm | 0.2 ppm |
