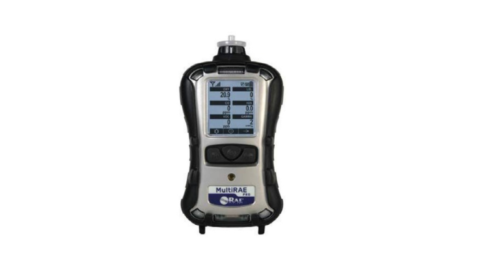

RAE Systems MultiRAE Pro Pumped Portable Multi-gas Monitor – 10.6 eV ppb PID / LEL / CO + H2S / O2 / Gamma / Li-ion / Non-Wireless – MCB3-A3C1REZ-020
MCB3-A3C1REZ-020 MultiRAE Pro Pumped Portable Multi-gas Monitors – 10.6 eV ppb PID / LEL / CO + H2S / O2 / Gamma / Li-ion / Non-Wireless by RAE Systems
The MultiRAE Pro is the industry’s only portable wireless multithreat monitor. The MultiRAE Pro’s ability to simultaneously detect gamma radiation and toxic industrial chemicals (TICs/TIMs) enables responders to reduce the equipment footprint and achieve greater agility when operating downrange.
The MultiRAE Pro’s optional wireless capability improves safety by providing commanders and safety officers real-time access to instrument readings and alarm status from any location for better situational awareness and faster incident response.
Key Features
- All-in-one monitoring capabilities for radiation, VOCs, oxygen, toxic and combustible gases, up to 6 threat types at a time
- Over 25 interchangeable sensor options, including parts-per-billion PID and gamma radiation
- Wireless access to real-time instrument readings and alarm status from any location
- Unmistakable five-way local and remote wireless notification of alarm conditions
- Intelligent sensors store calibration data, so they can be swapped in the field
- Large graphical display with easy-to-use, icon-driven user interface
Applications
- Civil defense (search and rescue)
- Homeland security
- HazMat response
- Military
- Semiconductor manufacturing
- Environmental
Specifications
Reviews (0)
Specifications
Instrument Specifications
| Size | 7.6″ H × 3.8″ W × 2.6″ D (193 × 96.5 × 66 mm) |
| Weight | 31 oz (880 g) |
| Sensors | Over 25 interchangeable sensors including gamma radiation, PID (ppb & ppm) for VOCs, electrochemical sensors, LEL, NDIR, and COâ‚‚ |
| Battery Options Runtime and Recharge Time | Rechargeable Li-ion (~12 hr runtime, < 6 hr recharge) Extended Li-ion (~18 hr runtime, < 9 hr recharge) Alkaline (4 × AA, ~6 hr runtime) |
| Display | Monochrome LCD (128 × 160) with backlight and auto screen flip |
| Display Readout | Real-time gas readings, PID correction, Man Down status Battery, datalogging, wireless status STEL, TWA, peak, minimum values |
| Keypad Buttons | 3 keys (Mode, Y/+, N/-) |
| Sampling | Built-in pump, 250 cc/min flow rate, auto shutoff on low flow |
| Calibration | Automatic (AutoRAE 2) or manual |
| Alarms | 95 dB buzzer, vibration, flashing LEDs Wireless remote alerts and Man Down alarm |
| Datalogging | Up to 6 months (5 sensors, 1-min interval) Configurable 1–3600 seconds |
| Communication and Data Download | PC via cradle, charger, or AutoRAE 2 Optional wireless RF modem |
| Wireless Network | ProRAE Guardian or EchoView Host system |
| Wireless Range | ~100 m (RAELink3) ~200 m (EchoView / RAEMesh) |
| Operating Temperature | -20°C to 50°C |
| Humidity | 0–95% RH (non-condensing) |
| Dust and Water Resistance | IP65 |
| EMI RFI | EMC Directive 2004/108/EC |
| Performance Tests | MIL-STD-810G, 461F, CSA, ISA compliant |
| Languages | Multiple including English, Arabic, French, German, Spanish, etc. |
| Warranty | 2 years (device & key sensors) 1 year (other components) |
| Wireless Frequency | IEEE 802.15.4 Sub 1GHz |
| Wireless Approvals | FCC Part 15, CE R&TTE |
| Radio Module | Supports RM900A |
Default Sensor Specifications
| Sensor | Range | Resolution |
|---|---|---|
| Radiation Sensor | ||
| Gamma | 0 to 20,000 μRem/h | 1cc CsI (Tl) scintillator with photodiode |
| PID Sensors | ||
| VOC 10.6 eV (Ext. Range) | 0 to 5,000 ppm | 0.1 ppm |
| VOC 10.6 eV (ppb) | 0 to 2,000 ppm | 10 ppb |
| Combustible Sensors | ||
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR Methane (LEL) | 0 to 100% LEL | 1% LEL |
| NDIR Methane (Vol.) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon Dioxide Sensor | ||
| COâ‚‚ (NDIR) | 0 to 50,000 ppm | 100 ppm |
| Electrochemical Sensors | ||
| Ammonia (NH₃) | 0 to 100 ppm | 1 ppm |
| Carbon Monoxide (CO) | 0 to 500 ppm | 1 ppm |
| CO Ext. Range | 0 to 2,000 ppm | 10 ppm |
| CO Hâ‚‚ Comp. | 0 to 2,000 ppm | 10 ppm |
| CO+ | 0 to 500 ppm | 1 ppm |
| Hâ‚‚S Combo | 0 to 200 ppm | 0.1 ppm |
| Chlorine (Clâ‚‚) | 0 to 50 ppm | 0.1 ppm |
| Chlorine Dioxide (ClOâ‚‚) | 0 to 1 ppm | 0.03 ppm |
| Ethylene Oxide (EtO-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene Oxide (EtO-B) | 0 to 10 ppm | 0.1 ppm |
| Formaldehyde (HCHO) | 0 to 10 ppm | 0.05 ppm |
| Hydrogen Cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen Sulfide (Hâ‚‚S) | 0 to 100 ppm | 0.1 ppm |
| Methyl Mercaptan | 0 to 10 ppm | 0.1 ppm |
| Nitric Oxide (NO) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen Dioxide (NOâ‚‚) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (Oâ‚‚) | 0 to 30% Vol. | 0.1% Vol. |
| Phosphine (PH₃) | 0 to 20 ppm | 0.1 ppm |
| Sulfur Dioxide (SOâ‚‚) | 0 to 20 ppm | 0.1 ppm |
