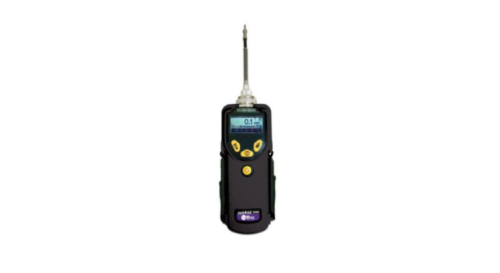

RAE Systems ppbRAE 3000 Portable Handheld VOC Monitor – 10.6 eV Lamp, Li-Ion / Universal Charger – 059-C110-000

059-C110-000 ppbRAE 3000 Portable Handheld VOC Monitor – 10.6 eV Lamp, Li-Ion / Universal Charger by RAE Systems

The compact ppbRAE 3000 is a comprehensive VOC gas monitor and datalogger for hazardous environments. The ppbRAE 3000 is the most advanced handheld VOC monitor available for parts-per-billion detection. This third-generation patented PID device monitors VOCs using a photoionization detector with a 9.8 eV, 10.6 eV UV-discharge lamp.

The built-in wireless modem allows real-time data connectivity with the ProRAE Guardian command center located up to two miles/3 km away (with optional RAELink3 portable modem) from the ppbRAE 3000 detector.

Monitor only includes

• ppbRAE 3000 Monitor, with RAE Systems UV lamp, as specified
• Datalogging with ProRAE Studio II
• Charging/download adapter
• VOC Zeroing Tubes (1 box)
• Tube adapter
• Tedlar® bag for calibration
• Flex-I-Probe™
• External filter
• Rubber boot with straps
• Alkaline battery adapter
• Lamp-cleaning and tool kit
• Operation CDROM
• Operation & Maintenance manual
• Soft leather case

Monitor with accessories kit adds

• Hard transport case with pre-cut foam padding
• Charging/download cradle
• 5 porous metal filters and O-rings
• Organic vapor zeroing kit
• Gas outlet port adapter and tubing

Optional calibration kit adds

• 10 ppm isobutylene calibration gas, 34L
• Calibration regulator and flow controller

Optional Guaranteed Cost of Ownership Program

• 4-year repair and replacement guarantee
• Annual maintenance service

Key Features

• 3-second response time
• Extended range from 1 ppb to 10,000 ppm with best in class linearity
• Humidity compensation with integral humidity and temperature sensors
• Real-time wireless built-in – Bluetooth (and optional RAELink3 portable modem) or Mesh Network support
• Integrated Correction Factors list of 220 compounds—more than any other PID
• Includes flashlight for dark conditions
• Large graphic display presents gas type, Correction Factor and concentration
• Easy access to battery, lamp and sensor in seconds without tools
• Rugged housing withstands use in harsh environments
• IP-67 waterproof design for easy cleaning and decontamination

Application

• Oil & Gas
• HazMat
• Industrial Safety
• Civil Defense
• Environmental & Indoor Air Quality
