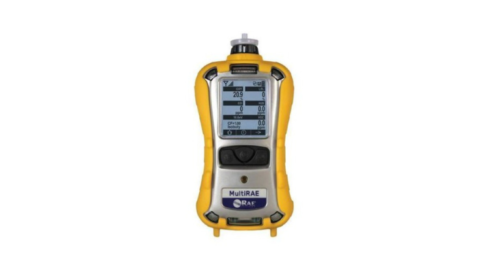

RAE Systems MultiRAE Pumped Portable Multi-gas Monitor – 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless – MBB3-A1C112E-020
MBB3-A1C112E-020 MultiRAE Pumped Portable Multi-gas Monitor – 10.6 eV PID / LEL / H2S / CO / O2 / Li-ion / Non-Wireless by RAE Systems
The MultiRAE is the most advanced portable chemical detector on the market. The MultiRAE delivers the broadest PID sensor range in its class and the versatility to support 25 intelligent interchangeable sensor options (such as PID, NDIR for combustibles and CO2, ammonia, chlorine, formaldehyde, and phosphine) to fully meet the monitoring needs in a variety of applications, including industrial hygiene, personal protection, leak detection, and HazMat response.
The MultiRAE’s optional wireless capability improves safety by providing commanders and safety officers real-time access to instrument readings and alarm status from any location for better situational awareness and faster incident response.
Key Features
- Wireless access to real-time instrument readings and alarm status from any location
- Unmistakable five-way local and remote wireless notification of alarm conditions including Man Down Alarm
- Intelligent sensors store calibration data, so they can be swapped in the field
- Extensive on-board gas libraries (190 VOCs and 55 combustible gases)
- Largest display in its class
- Continuous datalogging (6 months for 5 sensors, 24×7)
Applications
- Aviation (wing tank entry)
- Chemical
- Environmental
- Oil and gas
- Pharmaceutical
- Shipping / marine
- HazMat response
- Clandestine drug labs
Specifications
Reviews (0)
Specifications
Instrument Specifications
| Size | 7.6″ H x 3.8″ W x 2.6″ D (193 x 96.5 x 66 mm) |
| Weight | 31 oz (880 g) |
| Sensors | 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor |
| Battery Options Runtime and Recharge Time | Rechargeable Li-ion (~12-hr runtime, < 6-hr recharge time) Extended duration Li-ion (~18-hr runtime, < 9-hr recharge time) Alkaline adapter with 4 x AA batteries (~6-hr runtime) |
| Display | Monochrome graphical LCD display (128 x 160) with backlighting. Automatic screen flip feature |
| Display Readout | Real-time reading of gas concentrations, PID measurement gas and correction factor, Man Down alarm, visual compliance indicator, battery status, datalogging status, wireless status and reception quality STEL, TWA, peak and minimum values |
| Keypad Buttons | 3 operation and programming keys (Mode, Y/+, and N/-) |
| Sampling | Built-in pump, average flow rate 250 cc/min, auto shutoff in low-flow conditions |
| Calibration | Automatic with AutoRAE 2 system or manual |
| Alarms | Wireless remote alarm notification, audible (95 dB), vibration, flashing LEDs, on-screen alerts Man Down alarm with pre-alarm and real-time notification |
| Datalogging | Continuous datalogging up to 6 months (5 sensors, 1-minute interval) Configurable intervals from 1 to 3600 seconds |
| Communication and Data Download | PC data download and setup via charging cradle or AutoRAE 2 Optional wireless data transmission via RF modem |
| Wireless Network | ProRAE Guardian system or EchoView Host-based system |
| Wireless Range Typical | Up to 330 ft (100 m) to RAELink3 mesh modem Up to 660 ft (200 m) to EchoView Host or RAEMesh Reader |
| Operating Temperature | -4° to 122° F (-20° to 50° C) |
| Humidity | 0% to 95% relative humidity non-condensing |
| Dust and Water Resistance | IP-65 ingress protection rating |
| EMI RFI | EMC directive 2004/108/EC 100MHz to 1GHz 30V/m no alarm Contact ±4kV, Air ±8kV |
| Performance Tests | MIL-STD-810G and 461F compliant, LEL CSA C22.2 No.152, ISA-12.13.01 |
| Languages | Multiple languages including English, French, German, Spanish, Arabic, Chinese and more |
| Warranty | Two years on main components and key sensors One year on other sensors and consumables |
| Wireless Frequency | ISM band IEEE 802.15.4 Sub 1GHz, Wi-Fi 802.11 b/g |
| Wireless Approvals | FCC Part 15, CE R&TTE and others |
| Radio Module | Supports RM900A |
Default Sensor Specifications
| Sensor | Range | Resolution |
|---|---|---|
| PID Sensor | ||
| VOC 10.6 eV (Ext. Range) | 0 to 5,000 ppm | 0.1 ppm |
| Combustible Sensors | ||
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% LEL Methane) | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% Vol. Methane) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon Dioxide Sensor | ||
| Carbon Dioxide (CO2) NDIR | 0 to 50,000 ppm | 100 ppm |
| Electrochemical Sensors | ||
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm |
| Carbon Monoxide (CO) | 0 to 500 ppm | 1 ppm |
| Carbon Monoxide (CO), Ext. Range | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO) + | 0 to 500 ppm | 1 ppm |
| Hydrogen Sulfide (H2S) Combo | 0 to 200 ppm | 0.1 ppm |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm |
| Chlorine Dioxide (ClO2) | 0 to 1 ppm | 0.03 ppm |
| Ethylene Oxide (EtO-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene Oxide (EtO-B) | 0 to 10 ppm | 0.1 ppm |
| Formaldehyde (HCHO) | 0 to 10 ppm | 0.05 ppm |
| Hydrogen Cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen Sulfide (H2S) | 0 to 100 ppm | 0.1 ppm |
| Methyl Mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm |
| Nitric Oxide (NO) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen Dioxide (NO2) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (O2) | 0 to 30% Vol. | 0.1% Vol. |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm |
| Sulfur Dioxide (SO2) | 0 to 20 ppm | 0.1 ppm |
